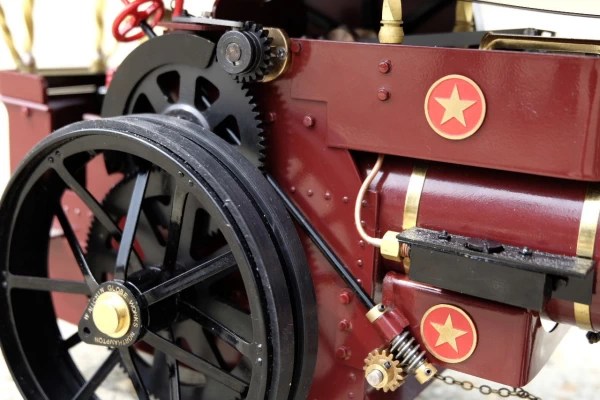

Maxitrak three quarter Inch Scale Allchin Model Steam Traction engine close up

Maxitrak 3 quarter inch Scale Allchin Model Steam Traction engine fully functional

Maxitrak three quarter Inch Scale Allchin Model Steam Traction engine with crane attachment

Maxitrak three quarter Inch Scale Allchin Model Steam Traction engine fully functional with crane attachment

Maxitrak three quarter Inch Scale Allchin Model Steam Traction engine showmans version

Maxitrak three quarter Inch Scale Allchin Model Steam Traction engine fully functional showmans version

Sold Out

Maxitrak 3/4 Inch Scale Allchin Model Steam Traction engine

Name: Maxitrak 3/4 Inch Scale Allchin Model Steam Traction engine
Brand: Maxitrak
SKU: 4980
Price: 1355.00 GBP
Availability: OutOfStock

£1,355.00 Inc VAT

Next working day dispatch

Worldwide shipping

Free UK delivery on all Wilesco engines & kits

VAT removed at checkout for eligible non-UK customers

3/4” Allchin Steam Traction Engine Authentic Maxitrak Live Steam Model

The prototype for this model is an agricultural traction engine built by Allchin in their well known “Globe” steam works, Northampton, England. This engine has typical Victorian characteristics of the period, with a short smokebox, straight back tender, smaller front wheels and “dumpy” looking boiler.

This sort of engine would be in general agricultural use, particularly working threshing machines and other equipment with a belt drive off the flywheel. There was a choice of power, this being the 7 nominal horse power version built in 1893.

Our model faithfully represents this classic design in 3/4″ Scale.

It is gas (propane/butane) fired, single cylinder with full working valve gear, displacement lubricator, working steering & a wealth of detail parts. Capable of pulling up to 12 stone on level ground!

Scroll down to product description for more information and specs.

Read full description & specifications ↓

CHOOSE COLOUR

Clear

Add to Wishlist

SKU: N/A Category: Maxitrak Tags: live steam, maxitrak, model steam, steam engine, steam traction engine, working steam engine Brand: Maxitrak

Description
Reviews (0)

Description

3/4” Scale Allchin Steam Engine Live Steam Model By Maxitrak

With various options including a Steam Roller, Crane and Showman’s conversions sets.

All sets can be retro fitted to older 3/4″ Allchin models.

The Showman’s has a full length canopy, belly tank, motion covers, and dynamo.

The Crane has a half length canopy and fully working Crane mechanism for total authenticity!

Please contact us for showmans and crane engine prices.

Steam roller version also available, please click here to view.

Available in Black, Green and Red.

Dimensions:

- - Scale 3/4″ to the foot
  - Length: 314 mm
  - Width: 140 mm
  - Height: 214 mm
  - Weight: 3.5 kg (Dry)
  - Boiler: Copper silver solder
  - Note: Some images show the model with extras fitted, i.e lining, painted wheels, canopy lettering & plate sets etc.

Listed dimensions apply to the agricultural engine. Dimensions for conversions will differ
