Mamod Steam Engine Troubleshooting: Common Problems, Fixes & Essential Maintenance
Mamod steam engines have been introducing generations of enthusiasts to the fascinating world of live steam. They are relatively simple machines, but they are still real working steam engines: they use heat to turn water into steam, build pressure inside a boiler and use that steam to produce mechanical movement.
That simplicity is one of their greatest strengths. When a Mamod engine refuses to run properly, the cause is usually something that can be identified and corrected with a methodical approach.
Whether you have just bought your first Mamod, inherited an old engine from a relative, found one in an attic, or bought a pre-owned model online, this guide explains the most common Mamod steam engine problems, what to check, what you can safely fix yourself and, just as importantly, what you should never do.
Important safety note: Mamod engines operate with hot water, steam, flames and pressure. They can cause burns or fire if operated incorrectly. Always follow the instructions supplied with your particular engine and never tamper with a safety valve or operate a live-steam engine unattended. Older Mamod models can differ considerably from newer examples, particularly regarding burners, water-level arrangements and controls.
Before You Troubleshoot Your Mamod: Understand the Basics
A Mamod steam engine needs four basic things to work:
- Enough water in the boiler
- A suitable heat source
- A way of retaining and controlling steam pressure
- A freely moving, properly lubricated engine
If any one of these is seriously compromised, performance will suffer.
For example, an engine may appear to have a mechanical fault when the real problem is simply that steam is escaping through a worn washer or leaking fitting. Likewise, an engine that produces plenty of steam may still fail to turn because the piston is sticking, the cylinder is poorly lubricated or the engine is losing pressure somewhere in the steam circuit.
The best approach is therefore to troubleshoot the engine systematically rather than immediately dismantling it.
Mamod Steam Engine Troubleshooting: Quick Diagnosis
| Problem | Likely causes | What to check |
|---|---|---|
| Engine produces little or no steam | Insufficient fuel, unsuitable fuel, poor burner, too much water, poor heat transfer | Water level, burner, fuel and boiler condition |
| Engine produces steam but will not run | Dry/sticky piston, insufficient lubrication, steam leak, worn piston, blocked steam passage | Cylinder, piston, steam leaks and lubrication |
| Engine runs slowly | Low steam pressure, steam leaks, friction, poor lubrication, worn piston | Safety valve, whistle, cylinder, bearings and piston |
| Engine runs then stops | Water level falling, fuel exhausted, excessive load, steam leak | Boiler water level and burner |
| Steam escapes around safety valve | Damaged O-ring/washer, dirty or faulty valve, incorrect fitting | Safety valve condition |
| Steam leaks from whistle | Worn washer/O-ring or damaged whistle | Whistle seal |
| Water spits from cylinder | Boiler overfilled, scale inside boiler, condensation, engine cold | Check water level, descale, and fully warm-up |
| Flywheel is stiff | Dry bearings, sticky piston, dirt or corrosion | Lubrication and mechanical movement |
| Engine runs well on blocks but poorly on the floor | Insufficient power, excessive load, drive-band friction | Wheels, drive band, gearing and steam pressure |
| Burner does not provide enough heat | Incorrect fuel, blocked burner, damaged wick/ceramic burner or poor positioning | Burner type and condition |
| Boiler loses water rapidly | Leak, excessive cylinder water discharge or overfilling | Boiler, fittings and water level |
The important thing is not to assume that one symptom has only one possible cause. A weak-running Mamod can have several small problems at once.
1. My Mamod Steam Engine Won’t Run
This is probably the most common question asked by new owners.
If your Mamod is producing steam but the flywheel refuses to turn, don’t immediately assume that the boiler is faulty.
Work through the following checks.
Is the engine properly lubricated?
A Mamod needs lubrication around its moving parts. Particular attention should be paid to the piston/cylinder assembly and the bearings and other mechanical contact points.
Modern specialist steam oils are available specifically for the piston, cylinder, valve and steam-contact areas. For example, BIX Steam Oil 460 is specifically marketed for Mamod and other model steam engines and is formulated for use where steam is present.
Do not simply soak the entire engine in oil. The aim is appropriate lubrication in the appropriate places.
A dry piston can create considerable friction and prevent an engine from starting.
Can the flywheel turn freely by hand?
With the engine cold and not under pressure, gently turn the flywheel.
It should move smoothly.
If it feels excessively stiff, investigate before applying heat.
Possible causes include:
- Dry bearings
- A sticky piston
- Dirt or corrosion
- Mechanical misalignment
- A tight or incorrectly fitted drive mechanism
- An engine that has been stored for many years without lubrication
Never force a seized mechanism. A little patience is much cheaper than replacing a damaged component.
Is the cylinder sticking?
Oscillating-cylinder Mamod engines rely on the cylinder moving correctly against its port face. If the cylinder has become sticky after prolonged storage, it may need freeing and lubrication.
Do not start attacking the cylinder with tools. Gently inspect the mechanism, clean away obvious contamination and use the appropriate lubricant.
If the cylinder remains tight, it may need more extensive attention.
2. My Mamod Produces Steam But Has No Power
This is a slightly different problem from an engine that produces no steam.
If the engine is making steam but struggles to turn, the first question should be:
Is the engine actually retaining enough steam pressure to do useful work?
Steam can escape from several places.
Check:
- Safety valve
- Whistle
- Boiler fittings and plugs
- Steam pipes
- Cylinder/port-face area
- Joints and washers
- Any visible soldered connections
A small leak can make a surprisingly large difference to performance.
Older Mamods can also suffer from worn pistons. The piston and cylinder need to form a reasonably effective seal while still moving freely. A worn piston can allow steam to bypass the piston rather than pushing it effectively.
Specialist Mamod guidance identifies worn pistons, steam leaks, poor lubrication and problems around the cylinder as common causes of poor performance.
3. Check the Safety Valve
The safety valve is one of the most important components on a Mamod.
Its job is to release steam if pressure reaches the valve’s designed release point.
Never block, clamp, screw down, modify or otherwise interfere with a safety valve.
A safety valve that appears to leak continuously should be investigated rather than defeated.
Depending on the age and model of your Mamod, the valve may use seals or O-rings that have deteriorated with age.
Signs of a problem can include:
- Continuous steam escaping from the top
- Steam escaping around the base
- Water/steam leaking excessively
- A valve that does not move as designed
- A valve that appears damaged or contaminated
The safety valve should be in good condition, and you should always check that the valve moves correctly before steaming.
If you are unsure whether a safety valve is functioning correctly, do not steam the engine until it has been checked or replaced with the correct component.
4. Steam Is Escaping From the Whistle
A leaking whistle can rob the boiler of pressure.
This is particularly noticeable on a small Mamod because the boiler produces a relatively limited amount of steam.
If steam is escaping around the whistle, check its sealing washer or O-ring and make sure the whistle is correctly seated.
Do not overtighten fittings in an attempt to cure a leak.
Older Mamod engines can have different fittings and seals, so identify the correct replacement before ordering parts.
A worn washer is generally a much better explanation for a leaking whistle than assuming that the boiler itself has failed.
5. My Mamod Is Producing Lots of Water From the Cylinder
A little water discharge during warm-up can be normal.
When a cold engine is first started, steam can condense inside the cooler cylinder and pipework. That condensate has to go somewhere.
However, excessive water spraying or spitting from the cylinder can indicate that the boiler has been overfilled.
Overfilled boiler
Too much water leaves no steam space at the top of the boiler.
This is one reason why correct water level is so important.
A Mamod should not simply be filled completely to the brim.
The correct level depends on the model and its water-level arrangement, so use the manufacturer’s instructions for that particular engine.
On models with a sight glass, the water level should be maintained within the specified safe range. On older models with a water-level plug, the filling procedure is different.
Dirty water
Limescale, soap, or impurities can cause the water inside the boiler to foam up violently as it boils.
Be sure to use distilled water or filtered rainwater in your Mamod steam engine to prevent limescale and corrosion.
If the problem persists, or if you can see any scale inside the boiler, descale and flush the boiler thoroughly using a good purpose made product such as Steam Clean boiler descaler.
6. My Mamod Is Not Making Enough Steam
If the engine is mechanically healthy but struggles to raise steam, investigate the heating system before dismantling the engine.
Check the fuel
Use only the fuel specified or approved for your particular burner.
Different generations of Mamod used different burner arrangements, and an old engine may have been modified by a previous owner.
Do not assume that a burner designed for one Mamod model is automatically correct for another.
If you’re struggling with fuel gel after the UK ban on solid fuel, try alternatives like methylated spirits or a BIX gas burner.
Check the burner position
The burner needs to transfer heat efficiently to the boiler.
If it is sitting too far away from the boiler, is incorrectly positioned or is not producing a healthy flame, steam production will suffer.
Check the burner condition
Depending on the type fitted, inspect for:
- Blocked burner openings
- Damaged wicks
- Contamination
- Damaged ceramic material
- Incorrect fuel
- Poor flame distribution
If you are using a replacement or conversion burner, follow the instructions supplied with that burner rather than applying assumptions from an older Mamod setup.
Forest Classics currently supplies replacement Mamod-compatible burners, including BIX methylated-spirit burners and ceramic gas burners, but these are different systems and must be installed and operated according to their specific instructions.
7. My Mamod Runs Slowly
A slow-running engine can be caused by either insufficient steam power or excessive mechanical resistance.
Work through the problem in this order.
First: check the engine without a load
If it’s a traction engine or other mobile model, temporarily remove the drive load where practical and safe.
A useful diagnostic technique is to see how freely the engine operates without the wheels having to move the model.
If the engine runs freely without a load but struggles when driving, investigate:
- Drive-band tension
- Wheel bearings
- Gearing
- Mechanical resistance
- Excessive load
- Insufficient steam pressure
A drive band that is too tight can create unnecessary resistance.
Second: check steam pressure
Look for leaks around the:
- Safety valve
- Whistle
- Cylinder
- Steam pipes
- Boiler fittings
Third: check lubrication
A dry engine will waste steam overcoming friction.
Lubricate the correct points with appropriate oil.
8. My Mamod Runs for a Few Minutes Then Stops
This is often straightforward to diagnose.
Has the fuel been exhausted?
Check the burner first.
Has the water level fallen too far?
This is extremely important.
If the water level reaches an unsafe level, remove/extinguish the heat source immediately and do not continue running the engine.
The precise water-level limit depends on the engine and its sight-glass or filling arrangement. Mamod operating guidance specifically warns that the burner should be removed if the water level falls below the specified safe level.
Is the engine overheating because of a lack of water?
Never continue heating an empty or seriously under-filled boiler.
This is not simply a performance issue. It is a safety issue.

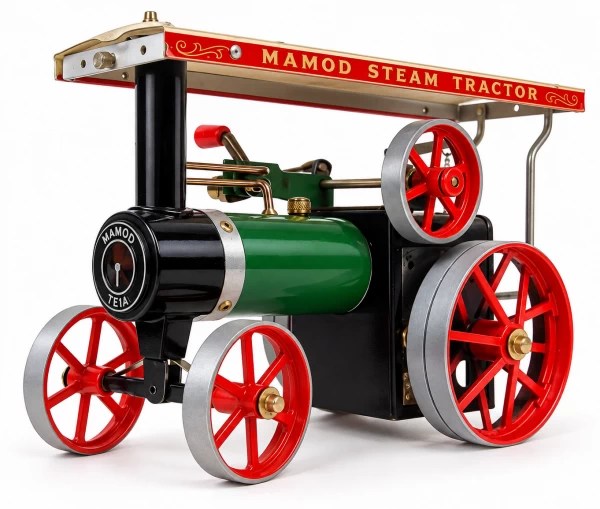

9. The Engine Runs On Blocks But Not On the Floor
This is a classic problem with mobile Mamods.
If the wheels are lifted clear of the surface, the engine may appear to run beautifully.
Put it on the floor and it barely moves.
That tells you something useful: the engine may be producing movement, but it does not have enough usable power to overcome the load.
Check:
- Drive-band tension
- Wheel freedom
- Axles and bearings
- Gearing
- Steam leaks
- Piston condition
- Lubrication
- Boiler pressure
- The weight/load being pulled
A drive band should not be so tight that it significantly loads the engine. Click here to get a new drive band for your Mamod.
If the engine itself is weak, improving the mechanical side may not completely solve the problem. A worn piston or steam leak can become much more obvious when the engine is placed under load.
10. My Mamod Is Very Noisy or Sounds Rough
Some noise is part of the character of a Mamod.
The question is whether the noise is normal mechanical noise or a sign of a problem.
Listen for:
- Grinding
- Metallic scraping
- Repetitive knocking
- A sudden change in running sound
- A flywheel that appears to wobble
- Irregular movement
- A cylinder that appears to bind
If an engine begins sounding dry or rough, stop and investigate rather than continuing to run it.
Lack of lubrication can accelerate wear.
11. My Mamod Has Been Stored for Years
This is particularly relevant when buying a vintage or second-hand Mamod.
Do not simply put fuel underneath it and light it.
Before steaming an old Mamod, inspect:
Boiler and fittings
Look for:
- Corrosion
- Damaged solder joints
- Signs of previous repairs
- Missing fittings
- Damaged water-level components
- Cracked or damaged sight glass
- Loose fittings
Safety valve
Make sure the correct safety valve is present and in suitable condition.
Never substitute with a random valve or modify the valve’s spring or release setting.
Boiler seals
Old washers and O-rings can harden, shrink or perish.
Pay particular attention to:
- Safety valve seal
- Whistle seal
- Water-level plug seal
- Other boiler fittings
Mechanical components
Check that:
- The flywheel turns freely
- The crank moves correctly
- The piston is not seized
- The cylinder moves correctly
- Bearings are not excessively dry or corroded
- Wheels turn freely on mobile models
Burner
Check the burner independently.
A vintage engine may have been stored with an old burner that is no longer suitable or safe to use.

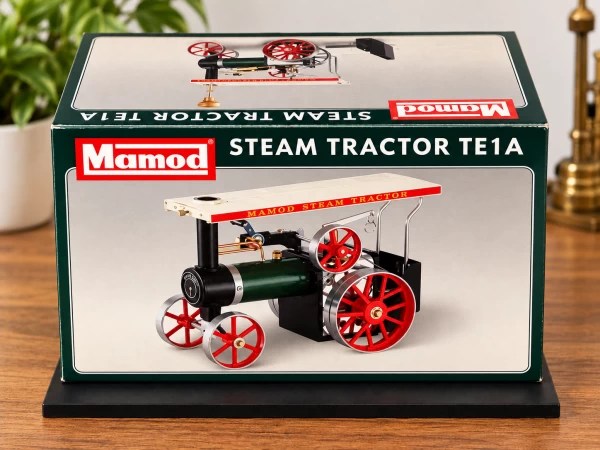

What To Do When You Buy a Mamod
If you’ve just bought a Mamod, resist the temptation to steam it immediately.
Instead, give it a new-owner inspection.
Step 1: Identify the model
Find out exactly what you have.
Mamod produced numerous stationary engines, traction engines, road locomotives, steam railway models and other variants over the years.
The model and approximate age matter because parts, controls, water-level arrangements and burners can differ.
If buying second-hand, photograph the engine from several angles and identify any modifications made by previous owners.
Step 2: Check what has been modified
Many Mamods have been modified over the years.
You may find:
- Replacement burners
- Gas conversions
- Modified cylinders
- Replacement safety valves
- Different wheels
- New pipework
- Replacement boilers
- Upgraded fittings
- Homemade repairs
A modification isn’t necessarily bad, but you need to know what you’re dealing with before steaming it.
Step 3: Flush the boiler if appropriate
A new or restored engine can contain manufacturing debris, dirt or deposits.
Some model-steam guidance recommends flushing new boilers before use.
For an old engine, flushing can also help remove loose debris.
However, avoid blindly putting aggressive chemicals, objects or cleaning materials into an unknown vintage boiler.
If the boiler is heavily scaled, contaminated or internally damaged, seek advice before attempting an extensive cleaning operation.
Step 4: Check the water level system
Learn how your particular Mamod indicates its water level.
Some models use a sight glass; others use a water-level plug or different arrangement.
Do not guess.
Knowing how much water the boiler should contain is one of the most important things a new Mamod owner can learn.
Step 5: Lubricate it correctly
Before the first run, lubricate the appropriate moving parts.
Use a suitable steam oil for steam-contact areas and an appropriate mechanical oil for external bearings and mechanisms where required.
Do not assume that one random household oil is suitable for every part of the engine.
Specialist steam oil is designed to survive the temperatures and conditions found in the cylinder and valve areas.
Click here to get a bottle of BIX steam oil for use in all Mamods.
Mamod Steam Engine Oil: What Should You Use?
This is an area where there is a lot of conflicting advice online.
The simplest rule is:
Steam-contact components
Use a proper steam cylinder oil/steam oil.
This is suitable for areas such as:
- Piston
- Cylinder
- Valve surfaces
- Other components directly exposed to steam
A modern example is BIX Steam Oil 460, which is suitable for Mamod engines and for cylinders, valve chests and related steam-contact areas.
External mechanical components
Appropriate light/medium mechanical oil may be suitable for bearings and other external moving surfaces, depending on the engine.
The important thing is not to confuse general-purpose penetrating fluids with proper lubricants.
WD-40-type products are not a substitute for steam oil or mechanical oil.
How Often Should You Oil a Mamod?
A Mamod should be lubricated before running, with additional lubrication during longer runs where appropriate.
Do not wait until an engine begins making a dry or grinding noise.
At the end of a run, lubrication also forms part of good storage practice.
The exact lubrication points vary between Mamod models, so a model-specific diagram or manufacturer’s instructions are preferable to a generic list.
What Water Should You Use in a Mamod Boiler?
Water quality matters because minerals can form scale inside a boiler.
Hard water can leave mineral deposits which may reduce efficiency and contribute to blockages or other problems over time.
For regular use, many experienced model-steam enthusiasts prefer distilled water because it lacks minerals and impurities that cause buildup.
Filtered rainwater and condenser water are also safe alternatives that lack heavy minerals found in ground sources.
Soft tap water is acceptable only in naturally soft water areas, though filtered options remain safer.
Whatever water you use, the important point is to avoid allowing excessive scale to build up.
If your kettle develops heavy limescale, your local water supply is a good indication that boiler scale may also become an issue.
What Fuel Should I Use?
This depends on your particular Mamod and its burner.
Do not assume that every Mamod uses the same fuel.
Possible arrangements encountered with Mamods include:
- Solid-fuel trays/tablets
- Methylated-spirit burners on certain models/periods
- Modern replacement burners
- Gas-conversion systems
Only use the fuel specified for the burner you are actually using.
Never improvise with petrol, white spirit, solvents or other unsuitable flammable liquids.
For example, Mamod troubleshooting guidance warns against substituting white spirit for methylated spirit in burners designed for methylated spirit.
If your engine has been converted to gas, follow the gas burner’s instructions rather than the instructions for an original solid-fuel burner.
Things You Should Never Do With a Mamod
There are several tempting shortcuts that you should avoid.
Never run the engine without enough water
This is one of the most important rules.
The boiler needs an adequate water supply while heating.
If the water level falls below the safe operating range, remove/extinguish the burner and allow the engine to cool before refilling according to the manufacturer’s procedure.
Never remove the safety valve while the boiler is pressurised
A pressurised boiler can release extremely hot water and steam.
Allow pressure to dissipate completely before removing the safety valve.
If necessary, use the whistle as designed to release remaining pressure, while keeping clear of escaping steam.
Never tamper with the safety valve
Do not:
- Stretch the spring
- Add washers
- Clamp it shut
- Block the outlet
- Replace its spring with something random
- Alter its release pressure
The safety valve is a safety device, not a performance upgrade.
Never refill a hot burner carelessly
Never add fuel to an active or hot burner.
The precise procedure depends on the burner, but the general principle is simple:
extinguish the burner, ensure the engine is safe, follow the manufacturer’s refuelling procedure and never introduce fuel to an uncontrolled flame.
Never pour liquid fuel onto a hot or burning burner.
Never leave a steaming Mamod unattended
A live steam engine combines:
- Fire
- Heat
- Pressurised steam
- Flammable fuel
- Moving mechanical components
It needs supervision.
Model recommend that engines are monitored throughout operation and not left unattended.
Never run your steam engine on a carpet
A suitable, stable and heat-resistant surface is important.
The engine can become very hot, and fuel or hot condensate can create additional hazards.
A clear, stable work surface in a well-ventilated area is much more appropriate.
Mamod Steam Engine Safety: A Simple Pre-Run Checklist
Before every run, get into the habit of checking:
Boiler
Correct water level
No obvious leaks
Correct fittings installed
Boiler appears sound
Safety equipment
Correct safety valve fitted
Safety valve appears to operate correctly
No attempt has been made to modify it
Engine
Flywheel turns freely
Piston/cylinder is lubricated
Moving parts are lubricated
No obvious mechanical damage
Drive band is correctly fitted if required
Burner
Correct burner for the engine
Correct fuel
Burner is in good condition
No fuel spills
Suitable fire precautions are in place
Environment
Well ventilated
Stable, heat-resistant surface
No flammable materials nearby
Engine will be supervised throughout the run
After Running: How to Look After Your Mamod
Once you’ve finished steaming, don’t simply put the engine back on the shelf.
Allow it to finish its run safely and let the engine cool.
Once pressure has fully dissipated and the engine is safe to handle:
- Remove or extinguish the burner according to its instructions.
- Allow the engine to cool.
- Drain the remaining boiler water.
- Lubricate appropriate moving parts.
- Wipe away excess water and oil.
- Store somewhere dry.
Draining the boiler after use helps prevent stagnant water and reduces the opportunity for corrosion and scale-related problems. Mamod recommend draining the boiler after use and oiling the working parts.
Why Does My Mamod Leak Steam?
Steam leaks are one of the most common causes of disappointing performance.
Start by looking rather than dismantling.
When the engine is cold, inspect:
- Safety valve
- Whistle
- Boiler fittings
- Steam pipes
- Cylinder/port face
- Soldered joints
During operation, do not put your fingers near suspected steam leaks.
Steam escaping from a small hole may be difficult to see but can cause a serious burn.
If you suspect a leak, shut the engine down safely and investigate once it has completely cooled and depressurised.
Should I Replace the Piston?
Not necessarily.
A worn piston can cause poor performance, but replacing parts before identifying the problem can waste time and money.
First check:
- Lubrication
- Cylinder movement
- Steam leaks
- Boiler pressure
- Safety valve
- Whistle
- Mechanical friction
If these are all satisfactory and the engine still produces steam but has very little power, piston wear becomes a more reasonable suspect.
A replacement piston may restore the seal between the piston and cylinder, particularly on a well-used or very old Mamod.
Should I Clean the Steam Pipes?
A partially blocked steam passage can certainly restrict performance, particularly on an old or poorly maintained engine.
However, this is an area where owners should be cautious.
Don’t blindly push hard objects through delicate steam pipes. You can damage a pipe, enlarge an opening, disturb soldered joints or push contamination somewhere more difficult to remove.
If you suspect a blockage, identify the exact pipe and its construction first.
For valuable vintage engines, restoration work is best approached carefully rather than simply trying to force a blockage through.
Can I Upgrade My Mamod?
Yes, there is a huge aftermarket for Mamod engines.
Popular upgrades and replacements include:
- Improved burners
- Gas conversion systems
- Replacement pistons
- Improved cylinders
- Replacement safety valves
- Improved wheels
- New drive bands
- Replacement pipework
- Cosmetic restoration parts
But upgrade only after establishing that the original engine is fundamentally sound.
A gas burner cannot compensate for a badly leaking boiler.
A new piston cannot fix a leaking safety valve.
A more powerful burner should not be used as a solution to an engine that is suffering from a mechanical fault.
Forest Classics currently supplies a range of Mamod-compatible BIX burners and gas conversion kits, including systems specifically designed for Mamod applications. Various Mamod gas conversion kits are available by clicking here.
When Should You Stop Troubleshooting and Ask for Help?
Some jobs are appropriate for an experienced hobbyist.
Others are better left to someone with model-steam engineering experience.
Get specialist advice if you find:
- A damaged boiler
- Serious corrosion
- Failed solder joints
- A damaged sight glass
- A questionable safety valve
- Unknown boiler modifications
- Evidence of excessive pressure
- A seized engine that won’t free safely
- Major steam leaks
- A boiler that has previously been modified
- A gas conversion you do not understand
- A pressure-related fault
The boiler is the component where experimentation is least appropriate.
A Mamod may be a relatively small model, but the boiler still contains pressurised steam.
Buying a Second-Hand Mamod: What to Look For
If you’re buying a used Mamod, condition is generally more important than appearance.
A beautifully polished engine with a questionable boiler is not necessarily a good buy.
Look for:
Good signs
- Original-looking fittings
- Clean boiler
- Intact solder joints
- Good safety valve
- Complete burner
- Free-moving flywheel
- Straight chassis
- Intact wheels
- Complete controls
- Evidence of sensible maintenance
Warning signs
- Heavy corrosion
- Missing safety valve
- Damaged boiler
- Homemade pressure fittings
- Modified safety valve
- Burn marks around the boiler
- Cracked sight glass
- Excessive solder repairs
- Missing burner
- Seized piston
- Very loose mechanical components
A non-running Mamod isn’t automatically a bad purchase. Many can be restored.
But a cheap engine that requires a boiler replacement, new fittings, mechanical work and cosmetic restoration can quickly become more expensive than a good runner.
Why Some Mamods Run Better Than Others
Two visually identical Mamods can behave very differently.
This is particularly true with older engines.
Differences may result from:
- Manufacturing tolerances
- Wear
- Previous repairs
- Piston condition
- Cylinder condition
- Boiler condition
- Burner condition
- Water quality
- Lubrication
- Steam leaks
- Previous modifications
- How the engine has been stored
Don’t compare your engine’s performance too closely with a video online.
A healthy Mamod does not need to achieve a particular RPM to be considered successful.
The goal should be safe, reliable and mechanically healthy operation, not simply maximum speed.
A Good Mamod Troubleshooting Method
When something goes wrong, resist the temptation to change five things at once.
Instead:
1. Stop and make it safe
Extinguish the burner if necessary and allow the engine to cool.
2. Identify the symptom
Is it:
- Not producing steam?
- Producing steam but not moving?
- Moving slowly?
- Losing pressure?
- Leaking?
- Stopping after several minutes?
3. Change one thing at a time
For example, if you discover a leaking whistle washer, replace that and test again.
Don’t simultaneously change the piston, burner, safety valve and cylinder.
4. Keep notes
If you’re restoring an old Mamod, write down:
- Parts replaced
- Oils used
- Burner fitted
- Water used
- Problems discovered
- Adjustments made
This can save enormous amounts of time later.
The Most Common Mamod Problems in One List
If your Mamod isn’t behaving properly, the most useful checklist is:
No steam
- Check water level
- Check burner
- Check fuel
- Check burner position
- Check for obvious boiler/fitting problems
Steam but no movement
- Lubricate correctly
- Check piston/cylinder movement
- Check for steam leaks
- Check safety valve and whistle
- Check piston condition
Runs slowly
- Check pressure
- Check lubrication
- Check mechanical friction
- Check steam leaks
- Check drive mechanism
Runs on blocks but not on the floor
- Check drive-band tension
- Check wheel/axle freedom
- Check mechanical load
- Check steam pressure
- Check piston condition
Leaks steam
- Inspect seals and washers
- Check fittings
- Check cylinder/port face
- Replace damaged components
Spits water
- Check for overfilling
- Allow the engine to warm up
- Check the correct water level
Stops during operation
- Check water level
- Check fuel supply
- Check for steam leaks
- Check whether the engine is overloaded
Final Thoughts: Keep It Simple
One of the great things about a Mamod steam engine is that you don’t need a workshop full of sophisticated equipment to keep one running.
Most problems can be approached logically.
Water + heat + steam pressure + lubrication + free movement = a working steam engine.
If an engine doesn’t run, start with those fundamentals.
Don’t immediately assume that you need a new cylinder or an expensive upgrade. A dry piston, worn washer, leaking whistle, incorrect water level or poorly performing burner can be enough to make a perfectly repairable Mamod appear completely dead.
And remember that safety comes before performance.
Never bypass a safety valve, never run an inadequately filled boiler, never refill a burner while it is unsafe to do so, and never leave a steaming engine unattended.
With sensible maintenance and careful operation, a Mamod can provide decades of enjoyment—and restoring a tired second-hand engine can be every bit as rewarding as running a brand-new one.
Need Mamod Spares or Advice?
Forest Classics has been involved with model steam engines for more than 26 years and was formerly one of the UK’s leading Mamod dealers. We continue to stock and supply a wide range of model-steam parts, accessories, oils, burners and related products, and our team has extensive experience helping enthusiasts keep older engines running.
If you’re unsure what part you need, don’t guess. A photograph of the engine, its fittings and the problem you’re experiencing can often make identifying the correct component much easier.
For Mamod parts, burners, steam oil and other model-steam accessories, visit Forest Classics and contact the team if you’re unsure what you need.
Mamod Steam Engine Troubleshooting – FAQ
Why won’t my Mamod steam engine run?
The most common causes include insufficient lubrication, a sticking piston or cylinder, inadequate steam pressure, steam leaks, a worn piston, or excessive mechanical friction. Check the basics systematically before replacing parts.
Why does my Mamod make steam but not move?
Check that the piston and cylinder move freely and are correctly lubricated. Then look for steam leaks around the safety valve, whistle, pipework and cylinder. A worn piston can also allow steam to bypass rather than produce useful power.
What oil should I use in a Mamod steam engine?
Use suitable steam oil for the piston, cylinder and other components exposed to steam. Appropriate mechanical oil can be used on external bearings and moving parts where required. Do not rely on penetrating sprays as a substitute for proper lubrication.
How much water should I put in my Mamod?
The correct level depends on the model. Engines with a sight glass have a specified operating range, while older models may use a water-level plug. Always use the procedure for your particular engine and never run it with an unsafe water level.
Can I use any fuel in a Mamod?
No. The correct fuel depends on the burner fitted to the engine. Use only the fuel specified for that burner and never substitute unsuitable flammable liquids.
Can I remove the safety valve to fill the boiler?
On models designed to be filled through the safety-valve opening, the valve can be removed for filling—but only when the boiler is completely depressurised and safe to handle. Never remove it from a pressurised boiler.
Why does my Mamod spit water from the cylinder?
Some water discharge can occur while a cold engine warms up because steam condenses in the cylinder and pipework. Excessive spitting can also indicate that the boiler has been overfilled.
Should I use WD-40 on my Mamod?
Penetrating fluids are not a substitute for proper steam-engine lubrication. If an engine is seized or sticky after storage, specialist restoration advice is preferable to simply flooding the mechanism with a spray and running it under steam.
Can an old Mamod still be restored?
Absolutely. Many vintage Mamods are straightforward mechanical machines and can be restored, but the boiler, safety valve and burner should receive particular attention before the first steaming.
Is a Mamod steam engine safe?
A correctly maintained engine operated according to its instructions can be enjoyed safely, but it is still a live-steam appliance involving heat, flame and pressure. Always supervise it, use the correct fuel and maintain the boiler and safety valve properly.
Sources and further reading
This guide has been prepared using Mamod operating information, model-steam safety guidance, specialist Mamod restoration material and current Forest Classics product information. Because Mamod produced many different models over many years, the instructions supplied with your particular engine should always take precedence over generic advice.
